10kW Hybrid Inverter GROWATT SPH – Residential Energy Storage
Product Brief
- Specs: 10000W rated power, 505453198mm dimension, 28kg weight

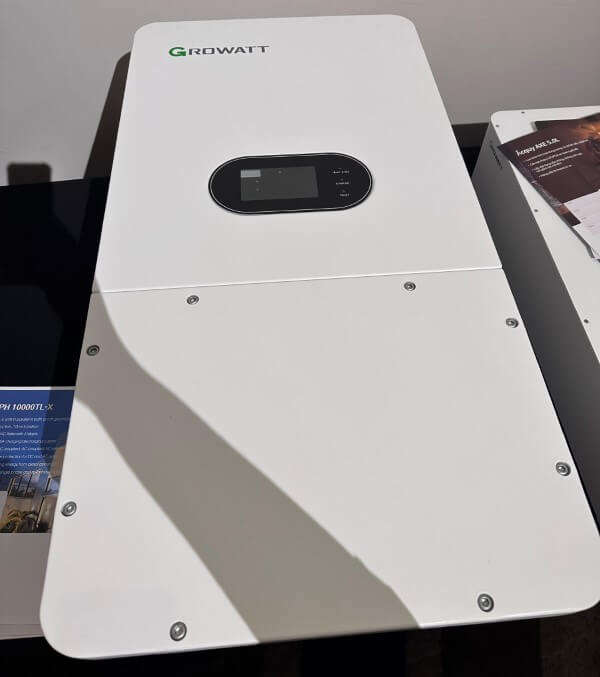

- Appearance: White cold-rolled steel casing, LED status indicator ring + LCD display
- DC Parameters: Compatible with 400-650W PV modules; 160-850V MPPT voltage range, 12A max input current per MPPT; 2 independent MPPT trackers, MC4 connectors
- Battery Parameters: 100-550V high-voltage lithium battery compatible, 25A max charge/discharge current; supports automatic BMS communication
- AC Parameters: 230/400V three-phase output (310-476V adjustable), 15.2A rated output current, 50/60Hz auto-adaptive frequency
- Performance: 98.2% max conversion efficiency, >99.9% MPPT tracking efficiency, 0.8 leading to 0.8 lagging adjustable power factor
- Connection: Three-phase hybrid topology, integrated terminals for grid, battery and backup load
Detailed Product Description
Tailored for residential villas and small commercial photovoltaic energy storage systems, the GROWATT SPH 10000TL3-BH-UP is a 10kW three-phase high-voltage hybrid inverter. It integrates PV grid-tied generation, battery energy storage, off-grid UPS backup and smart grid interaction, featuring transformerless topology, natural convection cooling and IP65 outdoor protection — ideal for maximizing solar self-consumption, realizing peak-valley tariff arbitrage, and providing uninterrupted backup power during grid outages.
Core Advantages
Space-Saving Build
10000W rated hybrid power, packaged in a 505453198mm wall-mounted cabinet and weighing just 28kg. Its transformerless integrated design reduces overall volume and weight, saves installation space, shortens on-site construction period, and fits easily in outdoor wall-mounted and rooftop energy storage scenarios.
Durable & User-Friendly Exterior
Crafted with a robust cold-rolled steel casing with IP65 waterproof and dustproof grade, it operates stably in -25℃ to 60℃ outdoor environments with fanless natural convection cooling, low noise and long service life. Equipped with an intuitive LCD display and LED status ring, it delivers clear, at-a-glance system operation and fault feedback.
Broad Module & Battery Compatibility
Works seamlessly with 400-650W mainstream PV modules via 2 independent MPPT channels, adapting to rooftop arrays with different orientations and tilts. Compatible with 100-550V high-voltage lithium battery packs, supports automatic BMS identification and flexible charge/discharge strategy configuration.
Flexible Voltage & Current
160-1000V wide DC input range, paired with a 160-850V MPPT tracking window (ensures stable energy harvest under weak light, cloudy and low-irradiation conditions), with 12A max DC input current per MPPT channel. 100-550V wide high-voltage battery adaptation with 25A max charge/discharge current, supports flexible power scheduling among PV, battery and grid.
Standardized Wiring
Comes with industry-universal MC4 PV connectors, standard terminal blocks for battery, grid AC and backup load. All terminals adopt foolproof design with built-in reverse polarity, over-current and short-circuit protection, enabling secure, fast connections that reduce wiring errors and speed up on-site commissioning.
High-Quality Power
Boasts <3% total harmonic distortion (THDi) at rated power and adjustable 0.8 leading to 0.8 lagging power factor, supports 100% three-phase unbalanced output. It produces clean, stable electricity that avoids interference with household and commercial sensitive devices, and fully complies with global mainstream grid access standards.
Product Specification
| Item No. | SPH 10000TL3-BH-UP |
|---|---|
| Size | 505453198mm (W×H×D) |
| Material | Cold-rolled steel, IP65 protection |
| Suggested power range of individual components(W) | 400-650 |
| Maximum DC input voltage(V) | 1000 |
| Start the voltage (V) | 160 |
| MPPT voltage range(V) | 160-850 |
| MPPT Quantity | 2 |
| DC Connector model | MC4 |
| Battery voltage range(V) | 100-550 |
| Max charge/discharge current(A) | 25 |
| AC output type | Three-phase 3L+N+PE |
| Rated AC output current(A) | 15.2 |
| Payment Terms | T/T or L/C, Western Union |
| Supply Ability | 15,000 Units / Month |
| Place of Origin | Hefei, Anhui, China |
