The 5376WH 105Ah LiFePO₄ battery is designed for industrial, energy storage, and specialty vehicle applications. With a 16-series 3.2V LiFePO₄ cell configuration, it delivers 51.2V nominal voltage and 5376Wh energy. Weighing 45kg and measuring 430×170×566mm (L×W×H), it features high energy density (150Wh/kg), enhanced safety (LiFePO₄ chemistry), and intelligent 6-layer BMS protection. It supports CAN/RS485 communication and customizable discharge rates (1C/2C)
Core Advantages
Safety
LiFePO₄ chemistry ensures thermal stability and eliminates explosion risks, with 6-layer BMS protection against overcharge, over-discharge, short circuits, and temperature extremes
Longevity
≥8000 cycles at 80% DOD, 5-8 times longer than lead-acid batteries; <3% monthly self-discharge at room temperature

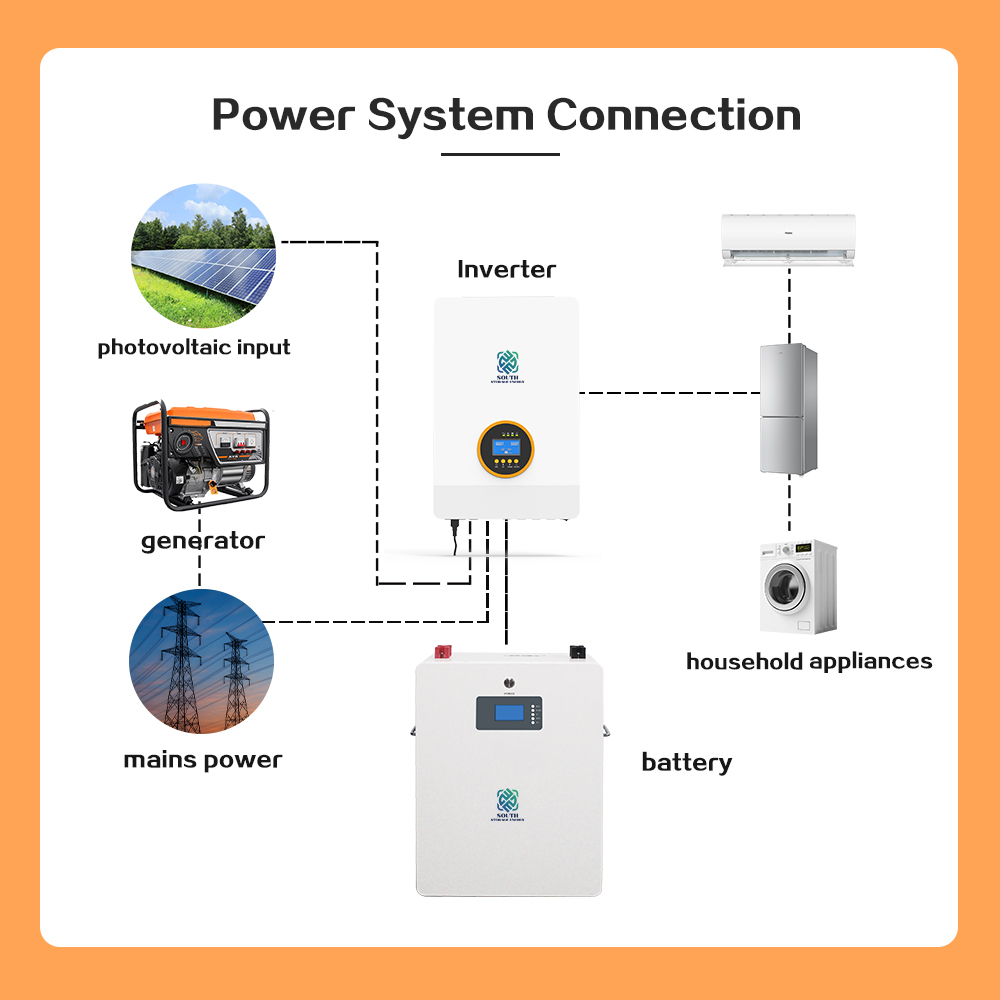

Energy Storage Systems
Solar (80% DOD), UPS backup (<20ms response)
Customization Options

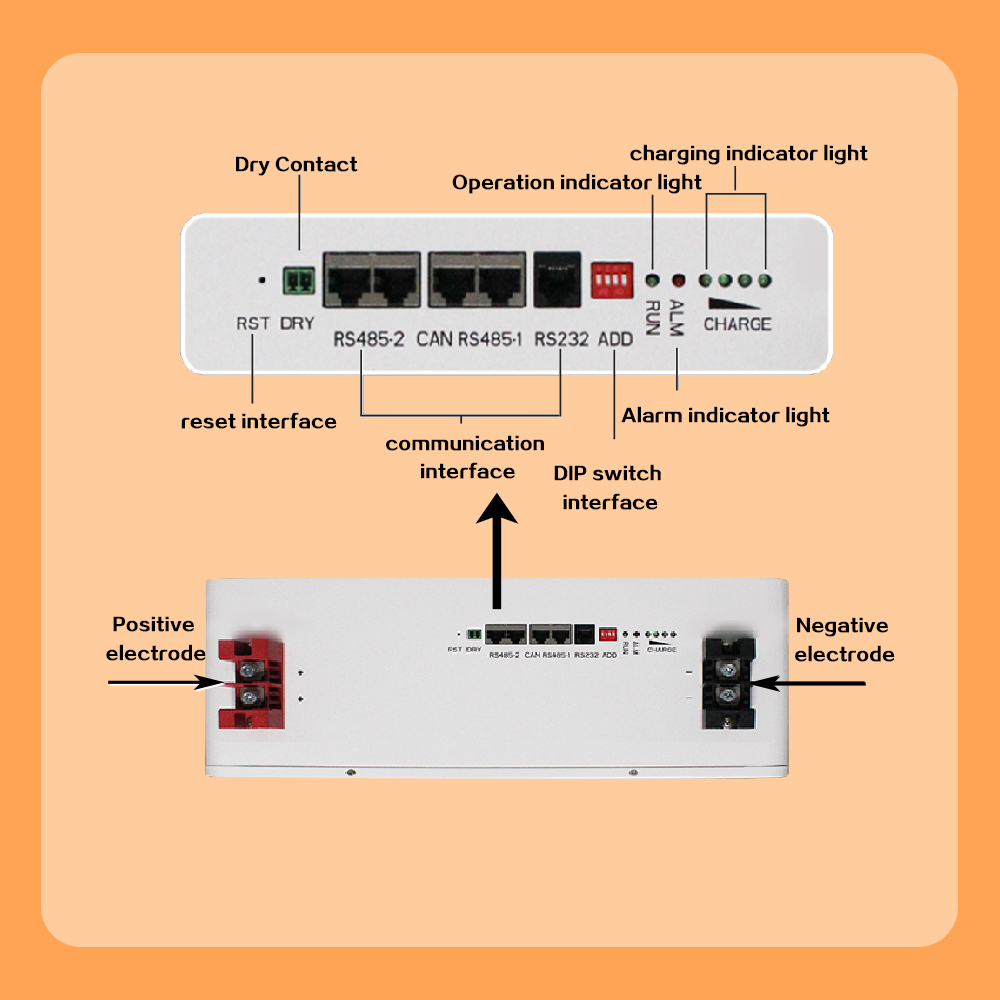

OEM/ODM support for interfaces, dimensions, discharge rates (1C/2C), and communication protocols (CAN/RS485)
Compliance & Certifications
Complies with UN38.3, IEC 62619, UL 1973, CE, and RoHS; halogen-free and recyclable materials
Product Specification
| Item No.: | SSE-5KWH |
| Size: | 430 × 170 × 566mm (L×W×H) |
| Battery type-Chemistry: | LiFePO4 |
| Terminal Type: | M6 |
| Terminal Torque: | 8.5 NM |
| Internal Resistance: | <30mΩ |
| Efficiency – round trip: | >99.5 % |
| Self Discharge per Month: | <3% |
| Max parallel connectors: | 16 Pcs |
| Payment Terms: | T/T or L/C, Western Union |
| Supply Ability: | 10,000 / Month |
| Place of Origin: | Dongguan, Guangdong, China |
